I have been using this tutorial to try and add overhead wires to the existing GLR puzzle pieces, however, i have hit some problems, right at the very start.
The problem is the props are not appearing in-game.

What i first thought was that i was probably using the worn instance, however i have tried diffrent ones with no luck, the instance i think i should be using is 0x580F5700 which for the straight GLR puzzle piece.

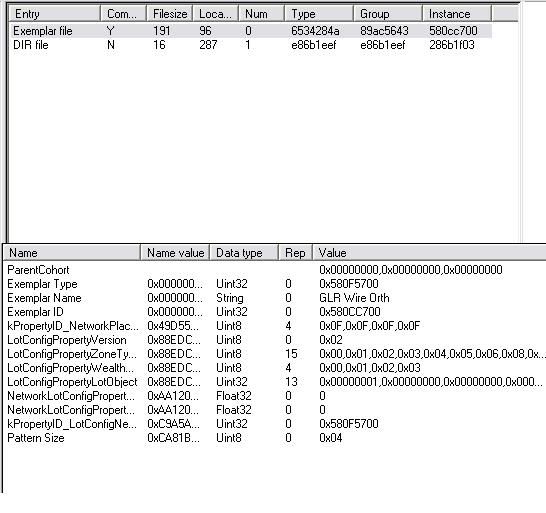

here is how it looks in the reader:

(please, feel free to kick me if i am doing something really obvious wrong )

So, any ideas?

[cogeo]

Some clarifications:
- Exemplar Type must be 0x00000021 (network lot)
- Exmplar ID must be the same as the instance ID of the (new) lot exemplar (yours).
- kPropertyID_LotConfigNetworkTileId is the instance of the network tile ("Highway" exemplar) which the network lot is for.
Also the list of LotConfig.. lines must be properly sorted, right-click on the exemplar and select "Reindex LotConfig" from the menu, before saving your file.
These must solve your problem.

[mjig_dudy]

Thanks a lot Cogeo    I see now it was just me being stupid  *kicks self*
