Adding Props to Resized Lots

Started by dsrwhat316, December 27, 2008, 10:37:08 AM

Previous topic - Next topic

0 Members and 1 Guest are viewing this topic.



Yes, I'm back with another tutorial! This one expands upon the resizing tutorial originally created by metasmurf (also found in this subforum).

In my previous tutorial, we weren't able to add props to the resized portion of the lot. Now, thanks to Paul's (squidi's) discovery, we are now able to add props to that resized area. Let me explain better with some pics:

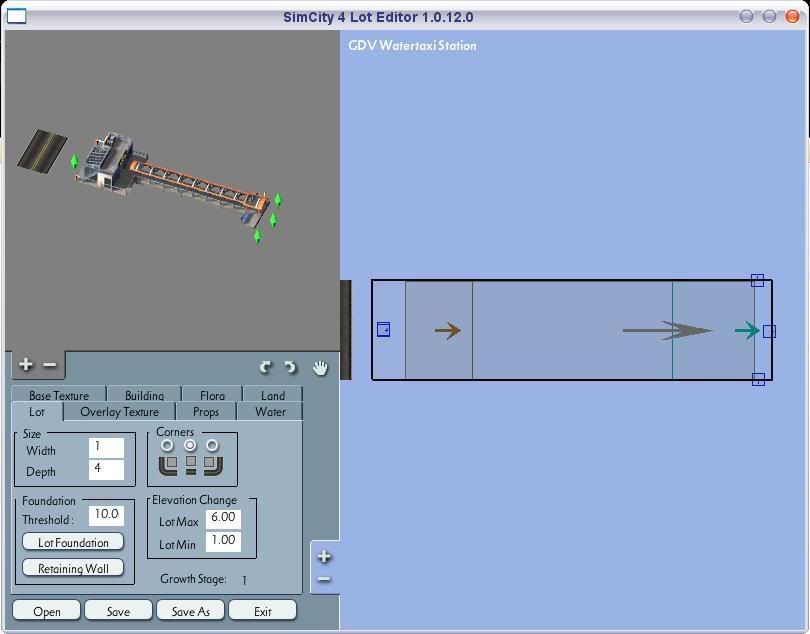

This is Goldiva's Water Taxi, found on the STEX. Using iLive's Reader, the textures were removed to make the lot transparent. A tutorial on how to do this was created by jeronji, which can be found by clicking here.

Now let's start with our lot. In this example, I'm making a pier using Goldiva's Water Taxi. Due to the Threshold and Elevation Change numbers need to make this lot shown above, I couldn't make the entire pier out of one lot and place the Water Taxi props on the lot. The Water Taxi would "sink" to the bottom, thus hiding it from view. Instead, I created a small portion of our new pier. The reasoning for this will be explained soon  :thumbsup:

Now here's an in-game shot with the Water Taxis and our "partial" pier lot plopped in place. With that done, let's save our game and exit.

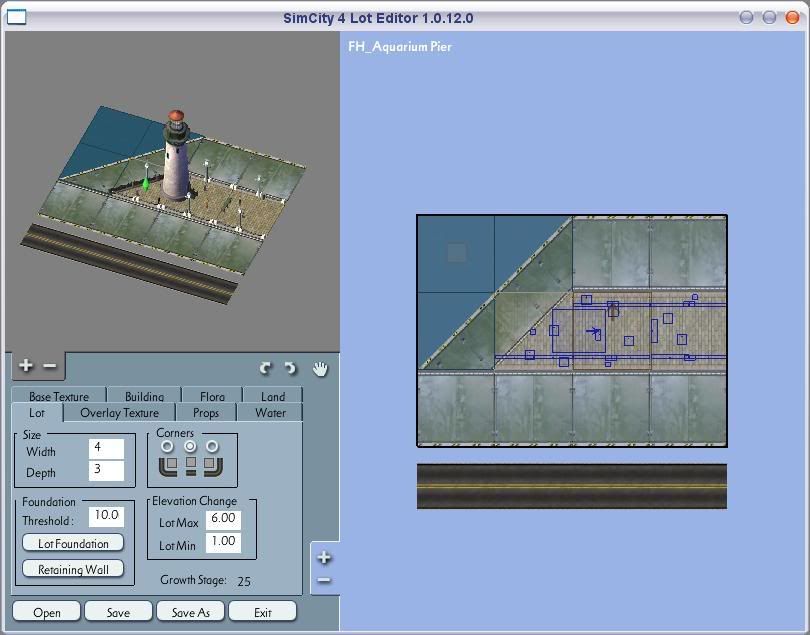

Okay, now we're back to the Lot Editor. I have extended the lot to fill the bare space in the previous pic. Props were also added to make the lot complete. At this point, we are done with the Lot Editor. *Note* When saving the lot, be sure to click on the save button, not save as.

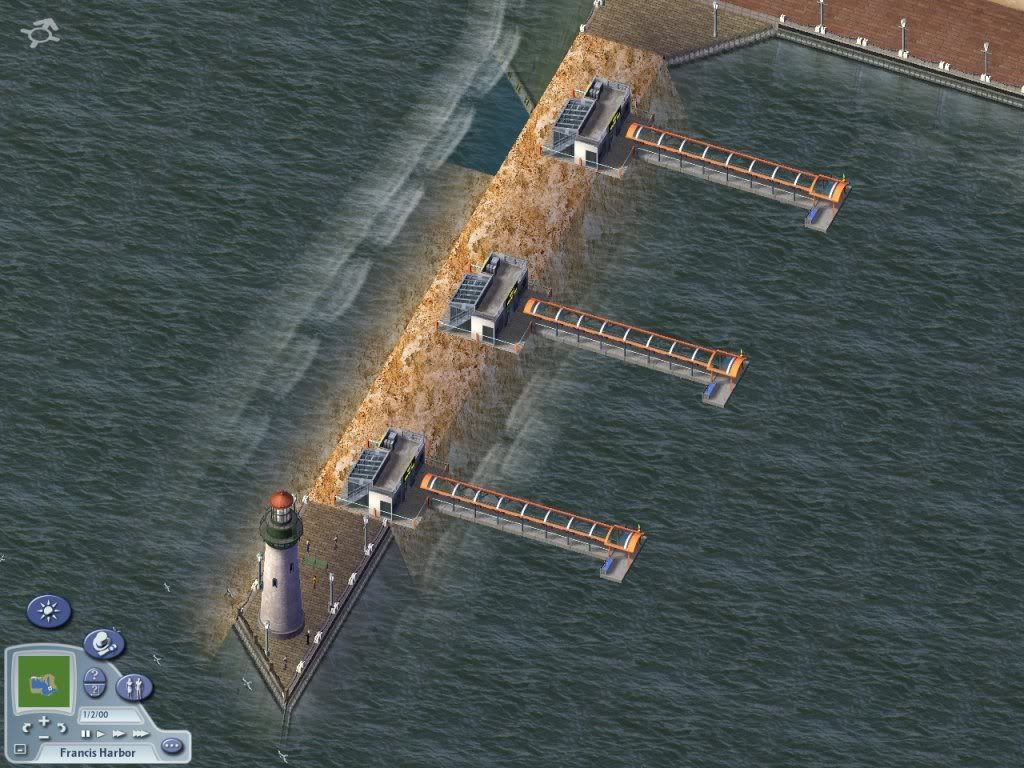

Back in-game, we see our newly resized lot. But you'll notice that you can see props only on the original portion of the lot and not the "extended" portion. Here's where Paul's (squidi's) technique comes into play...

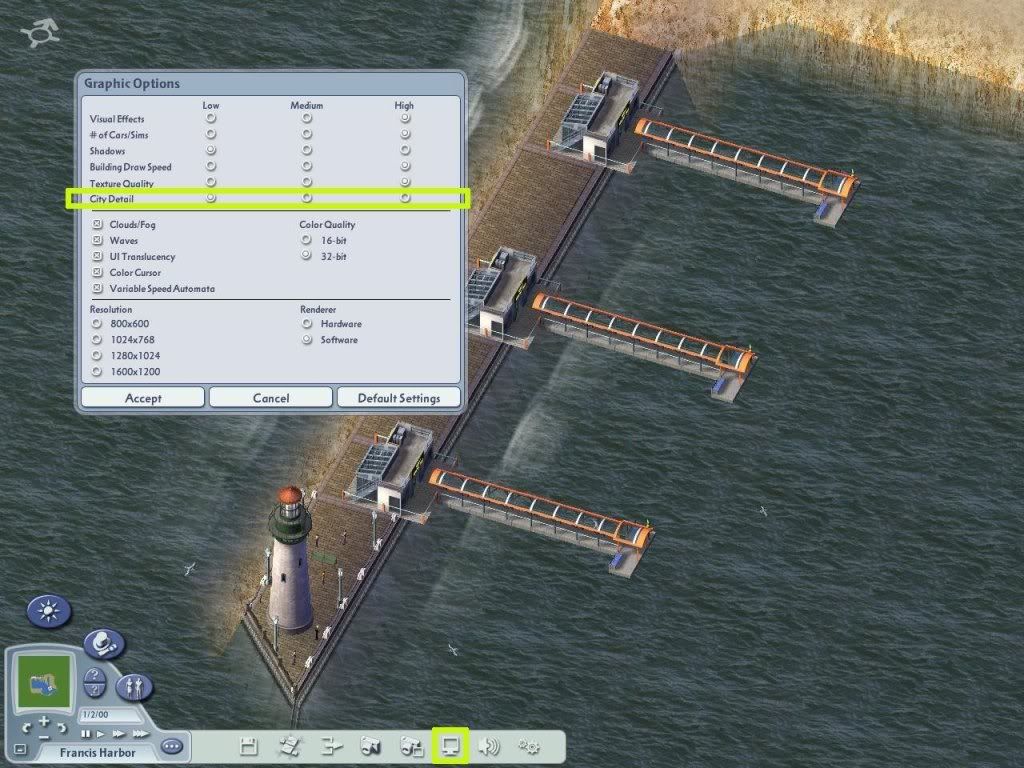

Open up the Graphics Menu as shown above. Change the city detail to another option. (Ex.: mine was originally set to high, now I'll set it to low) Save your game and exit.

Open your game again and return to your city. Go back to the Graphics Menu again and change your city detail setting back to its original state (Ex.: I'll set mine back to high). Save your game yet again and exit.

Start up your game (again) and return to your city (again). Let's see what it looks like now:

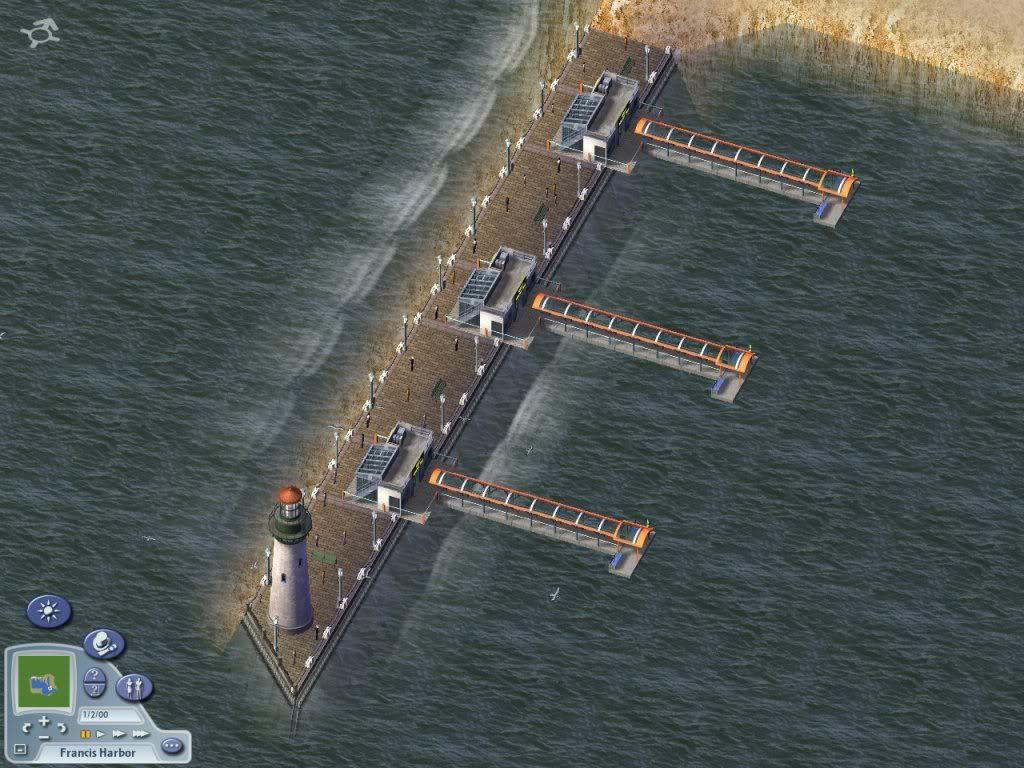

Huzzah! It worked! I have to admit that I was skeptical, at first, when this technique was first introduced. But after seeing it in action, I don't know how I ever survived without it.

This technique can be applied to putting base textures underneath NAM curves, as well as the FAR. Refer to my other tutorial for more info on this.

Special thanks go out to Paul (squidi) for discovering the technique and for granting me permission to publish it. Thanks also go to metasmurf for his original tutorial that first taught us how to resize lots and to jeronji for his transparency tutorial. I hope to see people put this technique to good use!

~ Dan
